Water is essential for life, impacting health, development, and sustainability. Urbanization and industrialization strain water resources, leading to scarcity and pollution. Effective treatment is crucial for a safe water supply and environmental protection.
Traditional methods like sedimentation and filtration remove contaminants but struggle with emerging pollutants. Advanced technologies offer improved removal, higher efficiency, lower energy consumption, and potential resource recovery.
These water treatment technologies address a range of pollutants, guaranteeing better water quality and reduced environmental impact. Yet, challenges like high costs, specialized expertise, and monitoring systems should be addressed through a comprehensive approach.
Traditional Water Treatment Methods
Traditional water treatment methods have been employed for decades to remove contaminants and impurities from water sources. These conventional processes typically involve a series of steps, including coagulation, flocculation, sedimentation, filtration, and disinfection.
Coagulation and Flocculation: In this initial stage, chemical coagulants, such as aluminum or iron salts, are added to the water to neutralize the electrical charges of suspended particles, causing them to clump together into larger, heavier particles called flocs.
Sedimentation: The flocs formed during coagulation and flocculation are allowed to settle at the bottom of sedimentation tanks or clarifiers, removing a significant portion of the suspended solids from the water.
Filtration: After sedimentation, the water passes through various types of filters, such as rapid sand filters or multimedia filters, to remove any remaining suspended particles and some dissolved contaminants.
Disinfection: Finally, the treated water undergoes disinfection, typically through the addition of chlorine or other oxidizing agents, to inactivate harmful microorganisms and ensure the water is safe for consumption or discharge.
While these traditional methods have been effective in improving water quality, they have limitations. They may struggle to remove certain contaminants, such as emerging micropollutants, pharmaceuticals, and personal care products. In addition, they can be energy-intensive, generate significant amounts of sludge, and require frequent maintenance and chemical inputs.

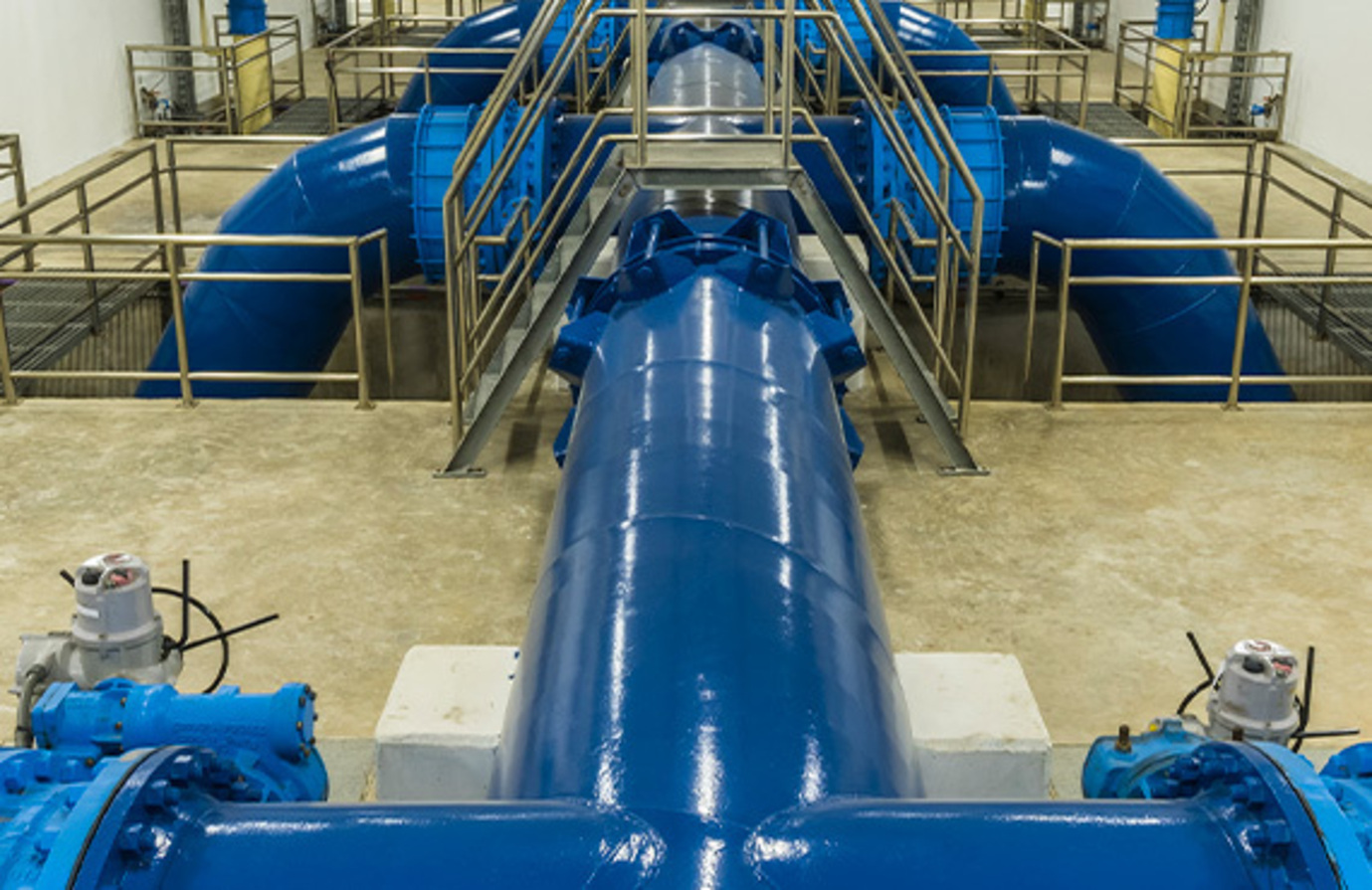

Advanced Filtration Systems play a crucial role in transforming water and waste management. These systems utilize cutting-edge technologies to remove contaminants and impurities from water sources, making it safe for consumption and reuse. By employing various filtration techniques such as nanofiltration, reverse osmosis, and activated carbon filtration, these systems can effectively remove both organic and inorganic pollutants present in water. The use of advanced filtration systems ensures the provision of clean and healthy water, significantly improving water and waste management practices.
Advanced Oxidation Processes (AOPs)
Advanced Oxidation Processes (AOPs) are a group of chemical treatment processes designed to remove persistent organic and inorganic pollutants from water and wastewater. These processes involve the generation of highly reactive oxidizing species, primarily hydroxyl radicals (•OH), which are capable of oxidizing and breaking down a wide range of organic compounds, including those resistant to conventional treatment methods.
AOPs can be classified into several categories based on the oxidation mechanism employed:
- Ozonation: This process involves the use of ozone (O3) as the primary oxidant. Ozone is a powerful oxidizing agent that can directly oxidize organic compounds or generate hydroxyl radicals through various pathways, such as ozone decomposition or the addition of hydrogen peroxide (H2O2) or UV radiation.
- UV-based AOPs: These processes utilize ultraviolet (UV) radiation in combination with oxidants like hydrogen peroxide (UV/H2O2) or ozone (UV/O3) to generate hydroxyl radicals. The UV radiation initiates the photochemical reactions that produce the highly reactive radicals.
- Fenton and Photo-Fenton Processes: The Fenton process involves the reaction of hydrogen peroxide with ferrous iron (Fe2+) to generate hydroxyl radicals. The Photo-Fenton process enhances the Fenton reaction by introducing UV radiation, which regenerates the ferrous iron and promotes the formation of additional hydroxyl radicals.
- Photocatalytic Oxidation: This process employs semiconductor materials, such as titanium dioxide (TiO2), as photocatalysts. When exposed to UV radiation, the photocatalyst generates electron-hole pairs, which can initiate redox reactions and produce highly reactive oxidizing species like hydroxyl radicals.
The advantages of AOPs include their ability to effectively degrade a wide range of organic pollutants, including those that are persistent and resistant to conventional treatment methods. Additionally, AOPs can often achieve complete mineralization of organic compounds, converting them into carbon dioxide, water, and inorganic ions.
AOPs find applications in various areas, including:
- Treatment of industrial wastewater containing recalcitrant organic pollutants
- Removal of emerging contaminants, such as pharmaceuticals and personal care products
- Disinfection and oxidation of water and wastewater
- Soil and groundwater remediation
- Degradation of hazardous waste and toxic compounds
While AOPs are effective treatment processes, they can be energy-intensive and may require specialized equipment and reagents. Ongoing research focuses on optimizing AOPs for improved efficiency, cost-effectiveness, and sustainability.

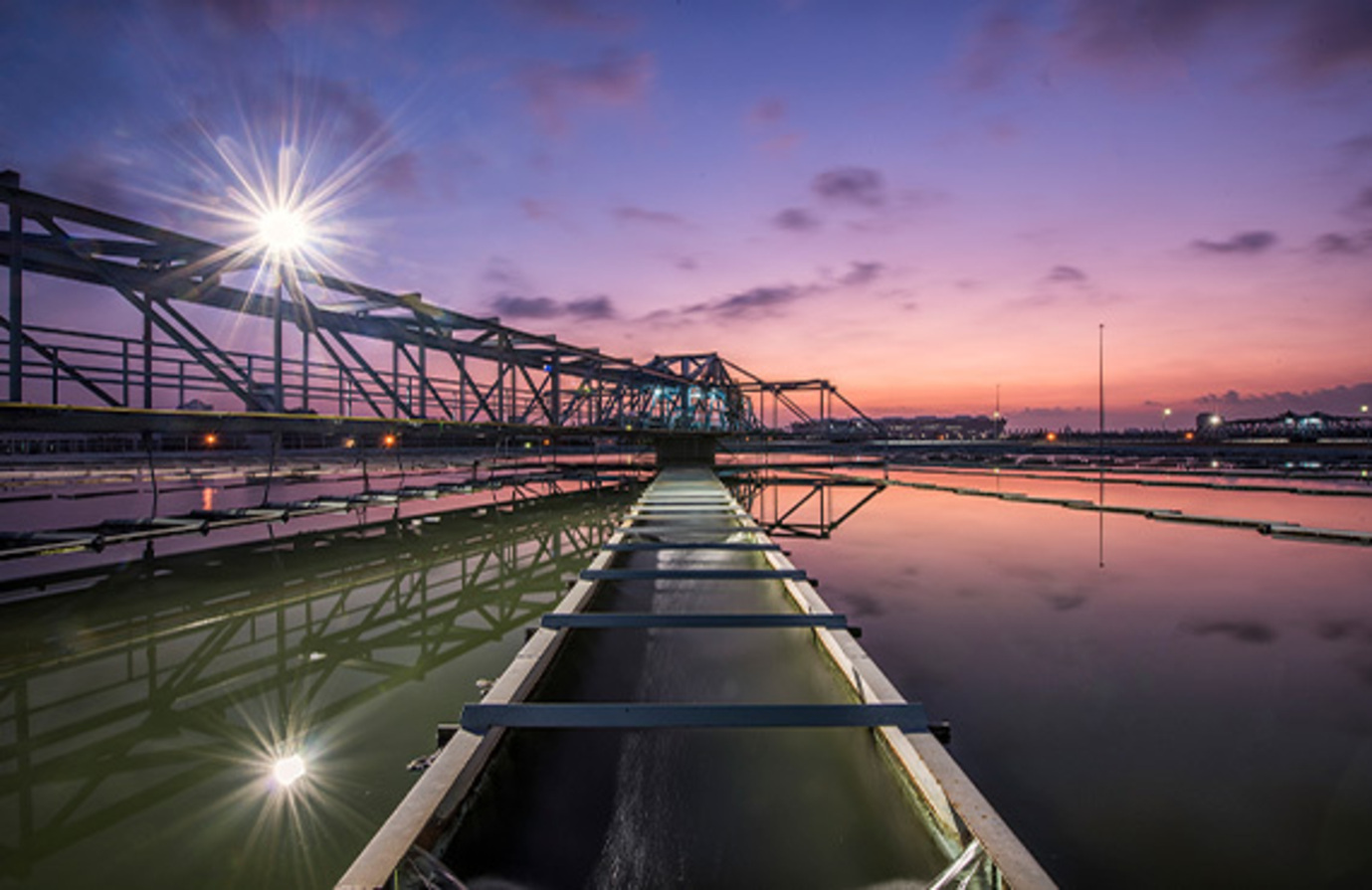

Real-time water quality monitoring systems help in closely monitoring the quality of water resources. These systems continuously collect data on parameters like pH, temperature, turbidity, and dissolved oxygen levels.
By providing real-time information about the quality of water, these monitoring systems help in detecting and addressing potential issues promptly. This enables water and waste management authorities to take timely actions such as adjusting treatment processes or implementing necessary measures to maintain water quality at desired levels.
Adsorption and Ion Exchange in Water Treatment
Adsorption and ion exchange are key processes in water treatment, removing contaminants like organic compounds, heavy metals, and dissolved solids efficiently and cost-effectively.
Adsorbents: Activated carbon is commonly used for its high surface area and porous structure, effective in adsorbing organic compounds, taste and odor substances, and heavy metals. Granular activated carbon (GAC) is used in fixed-bed filters, while powdered activated carbon (PAC) is directly dosed into water streams. Zeolites, with a strong affinity for cations, effectively remove heavy metals and ammonium through ion exchange and adsorption.
Ion Exchange Resins: Synthetic ion exchange resins facilitate the exchange of mobile ions with surrounding solution ions. Cation exchange resins remove positively charged ions, while anion exchange resins eliminate negatively charged ions.
Advantages and Applications:
- Effective removal of various contaminants
- Production of high-quality treated water
- Regeneration and reuse of adsorbents and resins
- Modular and scalable systems tailored to treatment needs
These technologies are utilized in municipal water treatment, industrial wastewater treatment, groundwater remediation, and point-of-use/point-of-entry treatment systems, contributing to safe water for consumption, industrial processes, and environmental discharge.
Sustainable Water & Wastewater Treatment
Challenges and Solutions: Sustainability is vital in water and wastewater treatment, with a focus on eco-friendly processes to address increasing populations and environmental concerns. Challenges like high energy use, aging infrastructure, and the need for process optimization exist.
Importance of Flow Measurement: Accurate flow data is crucial for optimizing treatment processes, reducing energy consumption, and minimizing environmental impact. Non-intrusive flow measurement solutions are in demand for their energy efficiency and low maintenance approach.
Data Analytics for Optimization: Data analytics technology analyzes data from sensors, meters, and monitoring systems to optimize water management processes. It helps identify trends, anomalies, and areas for improvement, aiding in data-driven decision-making to enhance water and waste management efficiency.
Flexim Ultrasonic Flow Meters for Sustainable Operations
Flexim offers advanced ultrasonic flow meters with a non-intrusive, clamp-on design for easy setup without disrupting systems or requiring pipe cutting. This reduces installation costs and minimizes the risk of leaks or contamination.
The technology operates without moving parts, ensuring high accuracy and repeatability with minimal maintenance. It reduces energy consumption and improves efficiency by eliminating obstructions and pressure drops.
Flexim meters are also durable, resistant to corrosion, buildup, and wear, making them suitable for various fluids, including wastewater. They offer tailored solutions for diverse water and wastewater treatment applications, covering various pipe sizes and flow rates.
Innovations in sustainable wastewater treatment have revolutionized water and waste management practices. Traditional wastewater treatment methods often consume significant amounts of energy and resources.
But, through innovative technologies such as anaerobic digestion, membrane bioreactors, and advanced oxidation processes, sustainable wastewater treatment plants can minimize energy consumption, reuse resources, and reduce environmental impacts. These innovations not only help in achieving regulatory compliance but also contribute to ecosystem preservation and the conservation of valuable water resources.

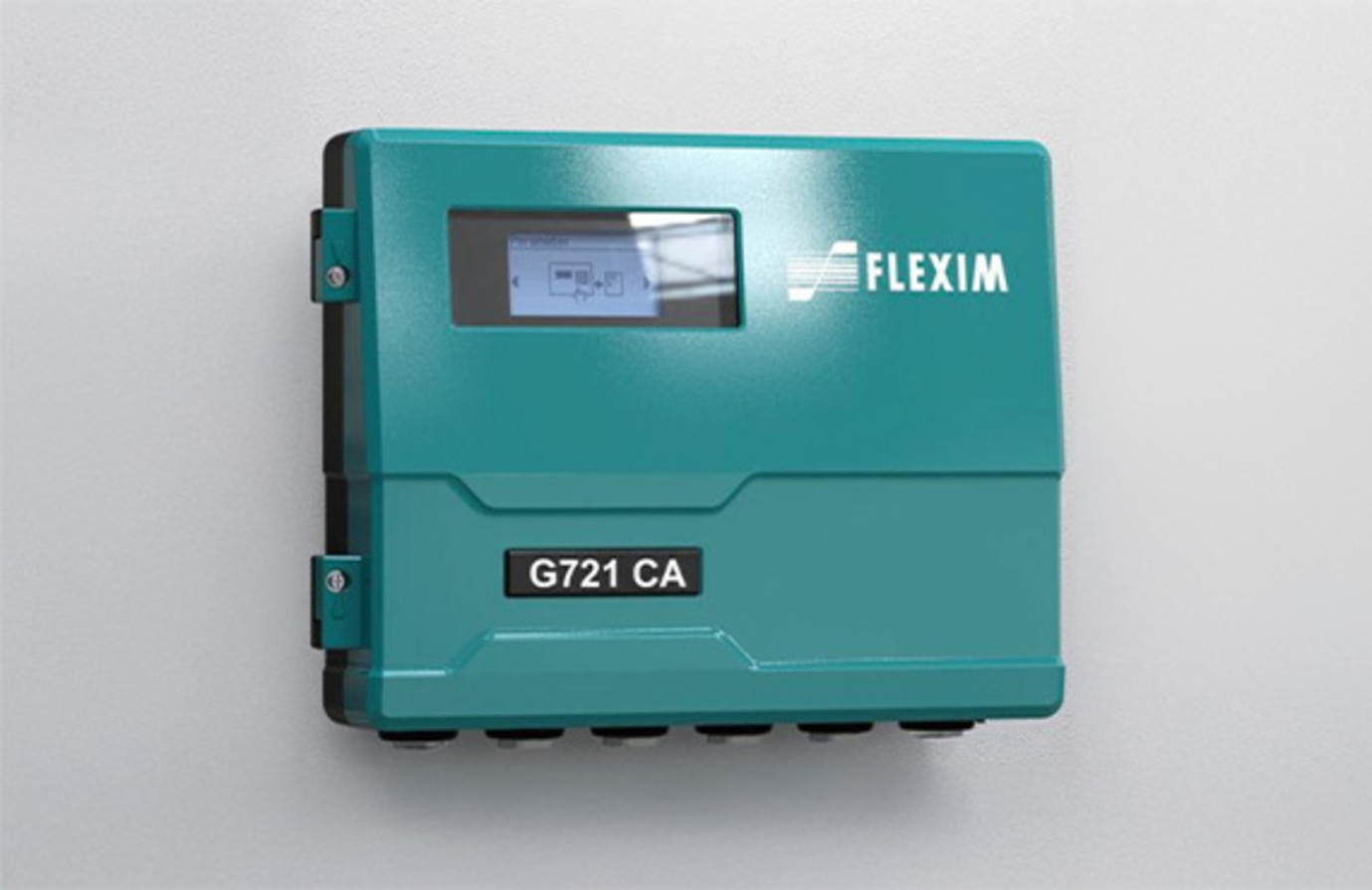

Flexim G721/G722 Meter Highlights
The Flexim G721 and G722 clamp-on ultrasonic flow meters are durable and reliable for water and wastewater applications. They feature a multi-channel measurement capability, allowing for simultaneous measurement of various parameters. These meters are suitable for cooling water monitoring, wastewater effluent measurement, leak detection, thermal energy measurement, flow balancing, and distribution control. Their non-intrusive clamp-on design minimizes downtime, reduces installation costs, and eliminates the risk of contamination or pressure loss.
Flexim F721 Meter Highlights
The Flexim F721 ultrasonic clamp-on flow meter is certified for use in hazardous areas and can be installed without shutting down pipes. It excels in liquid flow measurement applications across industries, minimizing maintenance requirements and potential leak points. It provides accurate, real-time flow data for improved process control, optimization, and sustainable operations.
Flexim G604/G608 Meter Highlights
The Flexim G604 and G608 ultrasonic clamp-on flow meters offer advanced transit-time correlation technology and ±1% measurement accuracy. Their built-in data logger enables continuous recording and storage of flow data for trend analysis, process optimization, and troubleshooting. With a non-intrusive design, they are suitable for various applications in water and wastewater treatment industries, ensuring reliable operation in demanding environments.
Flexim G831 Steam Meter
The Flexim G831 ultrasonic flow meter is specifically designed for measuring the flow and energy content of saturated and superheated steam. It provides valuable insights into the performance of steam systems, optimizing energy usage and reducing environmental impact. The G831’s non-intrusive clamp-on design eliminates the need for pipe cutting or process downtime during installation, ensuring efficient and uninterrupted steam flow. It is suitable for a wide range of steam applications, offering flexibility and scalability, as well as accurate and reliable measurements in challenging environments.
Meter Selection and Sizing
Choosing the right ultrasonic flow meter and sizing it correctly is crucial for optimal performance and accurate measurements in water and wastewater treatment applications.
Consider these criteria:
Pipe Size and Material: Flexim offers a wide range of meter sizes to accommodate various pipe diameters, from small-bore pipes to large-diameter pipes. The pipe material, whether metal, plastic, or concrete, also plays a role in determining the most suitable meter model.
Liquid Types: Different ultrasonic flow meters are designed to handle specific liquid types, such as water, wastewater, chemicals, or slurries. Selecting a meter compatible with the liquid being measured is essential for reliable and accurate readings.
Hazardous Areas: In environments where flammable or explosive gases may be present, it's crucial to choose a meter certified for use in hazardous areas. Flexim's intrinsically safe meters comply with relevant safety standards, ensuring safe operation in such conditions.
Flow Rate Range: The desired flow rate range should be considered when selecting a meter. Flexim offers meters capable of measuring low, medium, and high flow rates, ensuring accurate measurements across a wide range of applications.
Temperature and Pressure Conditions: The operating temperature and pressure of the liquid being measured can impact meter performance. Flexim's meters are designed to withstand various temperature and pressure ranges, ensuring reliable operation in diverse environments.
Proper meter sizing is equally important for optimal performance. Undersized meters may struggle with high flow rates, while oversized meters may compromise accuracy at low flow rates. Flexim's experts can assist in selecting the appropriate meter size based on factors such as pipe diameter, flow rate requirements, and application-specific conditions.
By carefully considering these factors and working with Flexim's knowledgeable team, water and wastewater treatment facilities can ensure they select and size the most suitable ultrasonic flow meter for their specific needs, contributing to sustainable and efficient operations.
Membrane Filtration Technologies
Membrane filtration technologies have emerged as a powerful solution for water and wastewater treatment, offering efficient separation and purification capabilities. These technologies rely on semi-permeable membranes that selectively allow the passage of certain components while retaining others, resulting in high-quality treated water.
Reverse Osmosis (RO): Reverse osmosis is a widely used membrane technology that employs a high-pressure process to force water molecules through a semi-permeable membrane, leaving behind dissolved solids, contaminants, and impurities. RO systems are highly effective in removing salts, heavy metals, bacteria, viruses, and other contaminants, making them suitable for desalination, industrial wastewater treatment, and the production of ultrapure water.
Nanofiltration (NF): Nanofiltration membranes have pore sizes smaller than those of ultrafiltration but larger than reverse osmosis membranes. NF is particularly effective in removing divalent ions, organic molecules, and certain dissolved salts. It finds applications in water softening, removal of disinfection by-products, and the treatment of industrial effluents.
Ultrafiltration (UF): Ultrafiltration membranes have pore sizes ranging from 0.01 to 0.1 microns, making them capable of removing suspended solids, bacteria, viruses, and macromolecules from water. UF is widely used as a pretreatment step for reverse osmosis systems, as well as in the treatment of surface water, wastewater, and industrial effluents.
Microfiltration (MF): Microfiltration membranes have larger pore sizes, typically between 0.1 and 10 microns, allowing them to remove particles, sediments, and microorganisms from water. MF is often used as a pretreatment step for other membrane processes or as a standalone treatment for removing turbidity and particulate matter.
The advantages of membrane filtration technologies include high removal efficiency, compact footprint, modular design, and the ability to produce high-quality treated water. These technologies are widely applied in various sectors, including municipal water treatment, industrial wastewater treatment, desalination, food and beverage processing, and pharmaceutical manufacturing.
Future Outlooks and Trends
Technological advancements, regulatory changes, and sustainability demands are shaping the future of water and wastewater treatment. Further, emerging technologies like nanotechnology, advanced sensors, and AI are revolutionizing treatment processes.
Stricter regulations and compliance demand advanced treatment technologies to remove emerging contaminants. Aging infrastructure upgrade is also a major challenge. Yet, resource recovery and renewable energy integration provide opportunities for sustainable growth. Meanwhile, extreme weather events pose challenges in managing water scarcity and stormwater.
The water and wastewater treatment industry presents numerous opportunities for innovation and sustainable practices. Resource recovery, including the extraction of valuable materials from wastewater streams, such as nutrients, energy, and biosolids, offers potential revenue streams and contributes to a circular economy. In addition, the integration of renewable energy sources, such as solar and wind power, can significantly reduce the carbon footprint of treatment facilities and promote energy efficiency.
In conclusion, the use of technology in water and waste management has brought about transformative changes. Advanced filtration systems, real-time water quality monitoring systems, data analytics, predictive maintenance, and sustainable wastewater treatment innovations have significantly improved the management of water resources and waste disposal.
By adopting these technologies, you can optimize water usage, ensure safe and clean water supply, minimize environmental impacts, and move towards sustainable and efficient water and waste management practices.
