Understanding the Functionality and Importance of Relief Valves

These important components act as mechanical backups, ensuring the safety of equipment, personnel, and processes by preventing potentially disastrous incidents caused by high pressure.

Key Functions of Relief Valves:

• Prevent equipment damage from over-pressurization
• Protect personnel from safety hazards
• Maintain system integrity during pressure fluctuations
• Ensure regulatory compliance with safety standards

In various industries, relief valves play significant roles in chemical processing facilities, oil and gas operations, power generation plants, and manufacturing facilities

A pressure relief valve is an important safety device used in systems that operate under pressure. It is designed to automatically open when the pressure exceeds a certain limit, allowing excess pressure to escape and preventing damage to the system or a potentially dangerous failure.

Key Functions:

• Continuously monitors the pressure in the system
• Automatically opens when the pressure reaches a specified level
• Releases excess pressure to a safe area
• Closes again once the pressure returns to normal

The pressure relief valve acts as a backup mechanism to protect against over-pressurization. Its main purpose is to ensure the safety of both equipment and people by mitigating any potential risks associated with high pressure.

Relief valves come in two primary categories, each designed for specific applications and operating conditions:

1. Spring-loaded Relief Valves

• Direct-acting mechanism with immediate response
• Ideal for liquid and steam systems
• Compact design suitable for limited space installations
• Cost-effective solution for standard applications
• Self-contained unit requiring minimal maintenance

2. Pilot-operated Relief Valves

• Enhanced flow capacity compared to spring-loaded alternatives
• Superior performance under high back pressure conditions
• Precise pressure control through pilot mechanism
• Bubble-tight shutoff capabilities
• Suitable for high-pressure applications in critical systems

Your specific application requirements determine the most suitable valve type. Spring-loaded valves excel in quick-response scenarios, while pilot-operated valves handle complex pressure control needs in demanding industrial environments.

Operational Phases of Relief Valves

Relief valves operate through three distinct phases to maintain system safety and pressure control:

1. Sensing Phase

• Your relief valve maintains constant contact with system pressure through the inlet port
• Pressure monitoring occurs continuously against the valve's setpoint
• Internal components remain in a balanced state during normal operation
• The disc stays firmly seated against the nozzle, preventing any discharge

2. Response Phase

• When system pressure exceeds the setpoint, the disc lifts against spring tension
• The opening force increases proportionally with rising pressure
• Your valve creates a discharge path for excess pressure
• Response times typically range from milliseconds to seconds, depending on valve design

3. Reset Phase

• System pressure decreases as excess fluid discharges
• Spring force gradually pushes the disc back toward the nozzle
• Blowdown settings determine the pressure differential needed for reseating
• The valve achieves tight shutoff once pressure normalizes below the setpoint

Each phase requires precise calibration to ensure proper valve function. Your relief valve's performance depends on factors like:

• Spring rate and compression settings
• Disc and nozzle material compatibility
• Guide clearances and alignment
• Proper blowdown adjustment

Regular testing verifies the correct operation of all three phases, ensuring reliable pressure protection for your system.

Relief valves are critical safety components used in many industries:

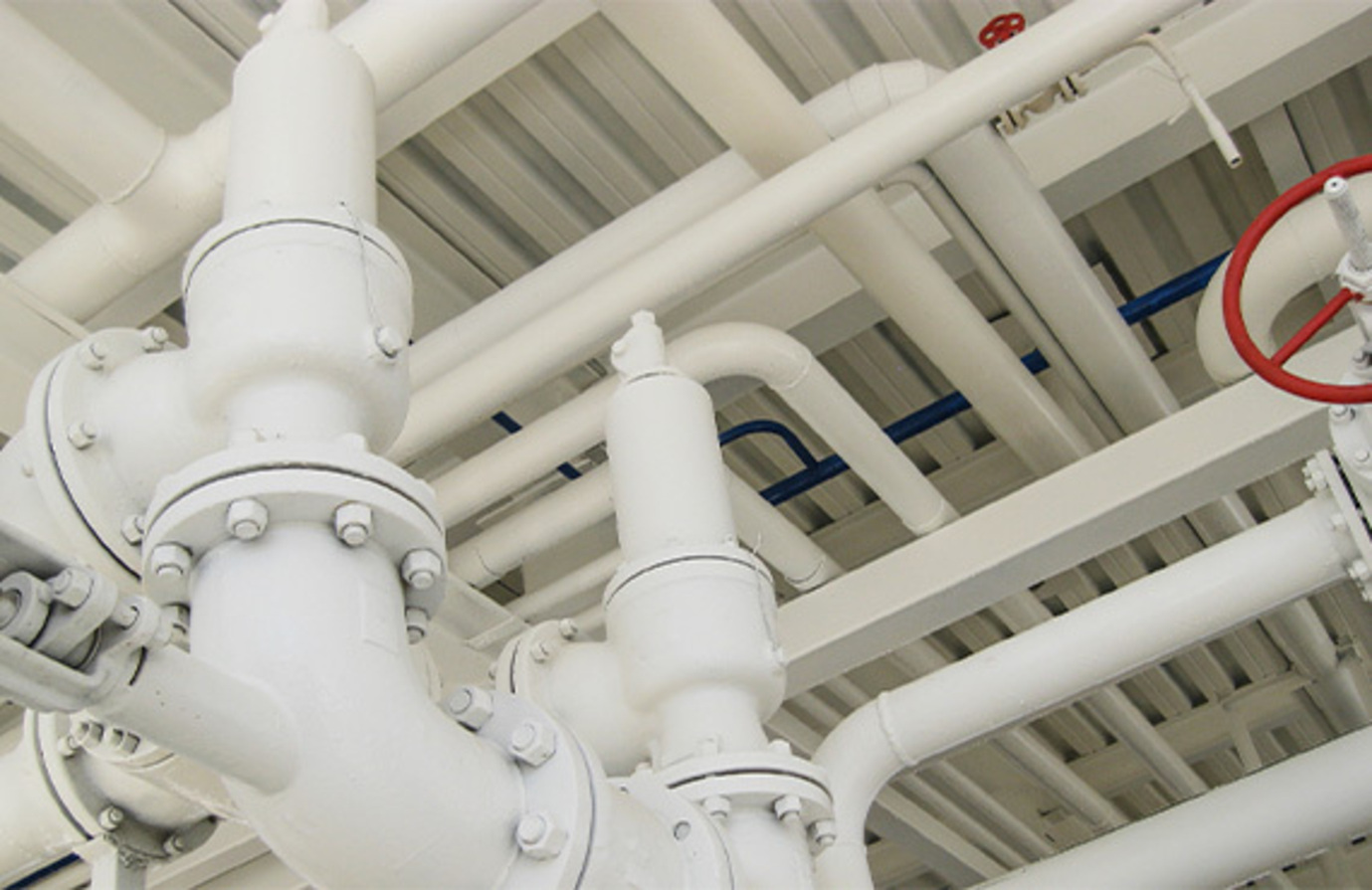

Chemical Processing Plants

• Protect reaction vessels from explosive pressure buildup
• Safeguard storage tanks during exothermic reactions
• Prevent equipment damage during process upsets

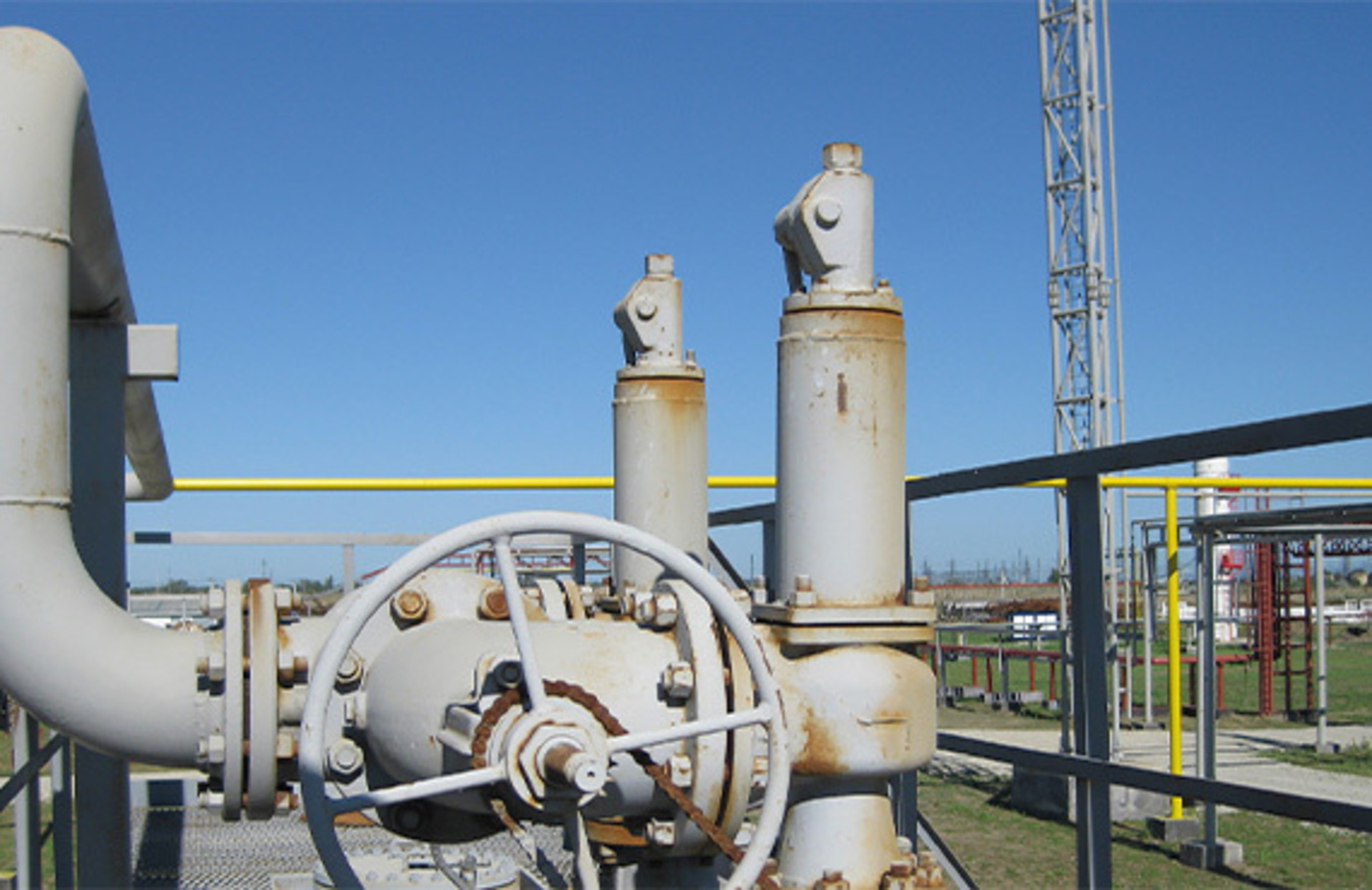

Oil and Gas Facilities

• Guard against pipeline ruptures during pressure surges
• Protect compression stations from mechanical failure
• Maintain safe pressure levels in storage vessels

Power Generation

• Ensure boiler system safety during steam pressure fluctuations
• Protect turbine components from overpressure damage
• Safeguard heat exchangers during thermal expansion

Pharmaceutical Manufacturing

• Maintain sterile processing equipment integrity
• Protect batch reactors during temperature-sensitive operations
• Prevent contamination of sensitive products

These applications show how important pressure relief valves are for keeping operations safe and maintaining product quality in various industries.

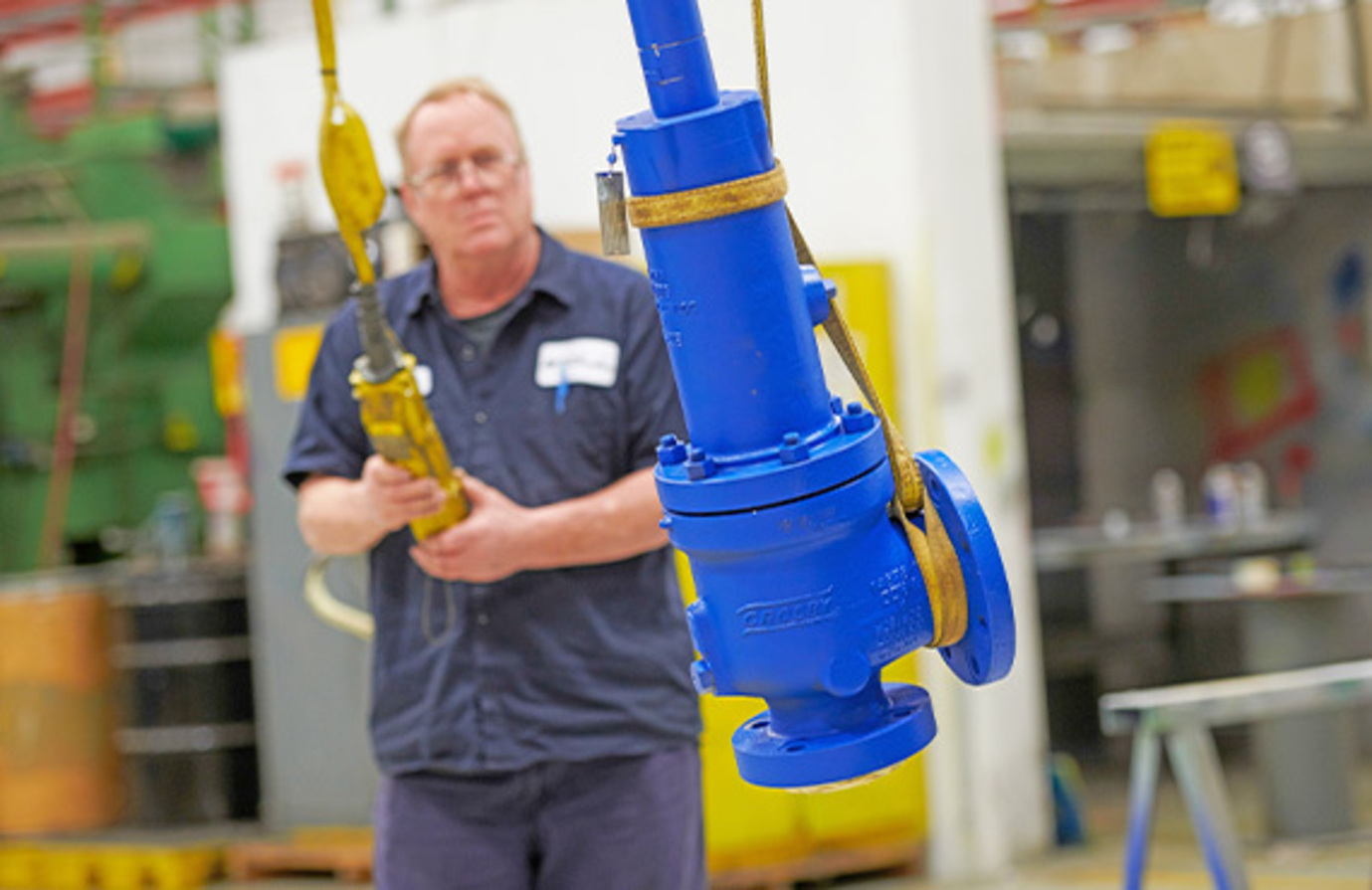

Proper installation of relief valves demands meticulous attention to detail and adherence to specific requirements. Your system's safety and efficiency depend on these critical factors:

Accurate Sizing Calculations

• Calculate required flow capacity based on worst-case scenarios
• Consider process fluid properties and operating conditions
• Account for pressure drop across inlet and outlet piping
• Factor in back pressure effects on valve performance

Mounting Position Requirements

• Install valves in vertical upright position for liquid service
• Maintain proper orientation to ensure gravity assists valve closure
• Keep inlet piping straight and short to minimize pressure drop
• Provide adequate support for valve weight and reaction forces

Accessibility Considerations

• Position valves within reach for routine maintenance
• Allow sufficient clearance for removal and testing
• Install isolation valves where permitted by code
• Ensure clear visibility of identification tags and markings

Critical Installation Guidelines

• Use appropriate gasket materials compatible with process fluid
• Apply proper bolt torque sequences during mounting
• Install drain lines to safe locations
• Protect valve from excessive vibration and thermal stress

Your relief valve's performance relies heavily on proper installation practices. Each installation detail contributes to system protection and operational reliability.

Regular maintenance ensures your relief valves operate reliably when needed. Here's your essential maintenance checklist:

1. Documentation and Testing

• Record valve specifications
• Log inspection dates
• Document test results
• Track performance trends

2. Inspection Schedule

• Check valve seating monthly
• Test pressure settings quarterly
• Verify calibration bi-annually
• Replace worn components yearly

3. Common Issues and Solutions

• Valve Leakage: Clean seating surfaces, replace damaged seals
• Failure to Open: Check for spring corrosion, adjust pressure settings
• Delayed Response: Clear debris, lubricate moving parts

4. Material Considerations

• Select stainless steel for corrosive environments
• Use PTFE seals for chemical resistance
• Install protective coatings in harsh conditions

Regular maintenance extends valve life, prevents unexpected failures, and maintains system safety standards.

Choosing an appropriate PRV requires careful evaluation of several critical factors:

1. Process Fluid Properties

• Viscosity and density
• Chemical composition
• Temperature range
• Flow characteristics

2. Environmental Considerations

• Ambient temperature
• Exposure to corrosive elements
• Indoor vs outdoor installation
• Area classification requirements

3. System Parameters

• Operating pressure range
• Required flow capacity
• Connection types
• Space constraints

Manufacturer guidelines provide essential specifications for:

• Pressure ratings
• Material compatibility
• Installation requirements
• Performance curves
• Maintenance schedules

Your valve selection directly impacts system safety and efficiency. Consulting with valve manufacturers helps ensure compatibility with your specific application requirements and operating conditions.
