Revolutionizing Maintenance with Advanced Valve Diagnostics

Valve diagnostics is the process of evaluating the condition and performance of industrial valves using data collected from sensors, positioners, and diagnostic instruments without taking the valve out of service. Advanced valve diagnostic services go beyond basic inspection by capturing detailed performance signatures, identifying wear patterns, detecting internal leakage, and flagging developing faults before they become failures.

At the core of advanced valve diagnostics is the valve signature, a graphical representation of a valve's performance as it strokes through its full range of travel. By comparing a current signature to a baseline taken when the valve was new or recently serviced, your maintenance team can identify friction increases, seat wear, packing degradation, and positioner problems with a level of specificity that visual inspection cannot match.

When you leverage these diagnostic capabilities across your facility, you shift from a reactive maintenance model to a predictive one. That shift is where the real operational and financial benefits live.

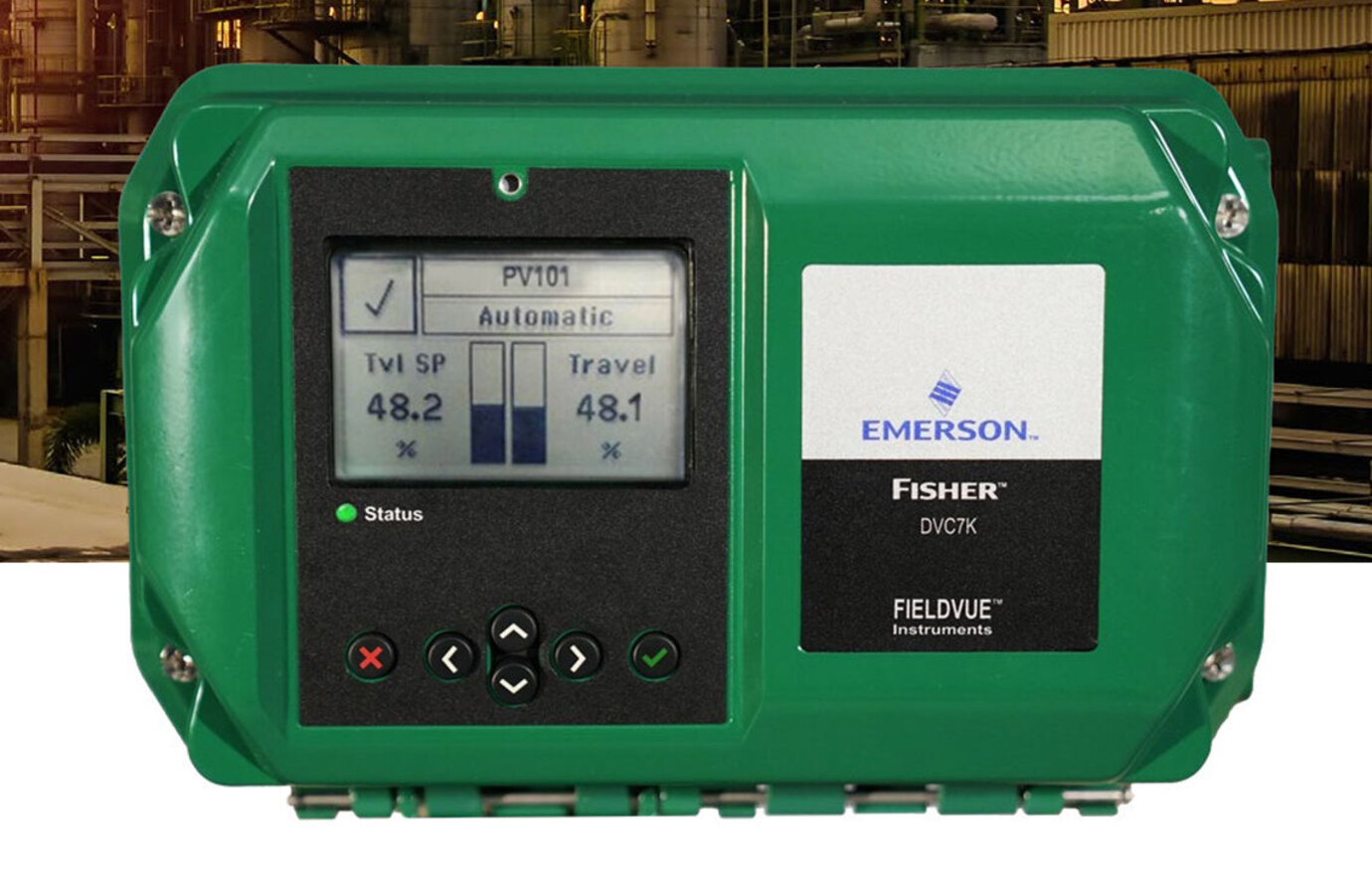

Fisher™ FIELDVUE™ Digital Valve Controllers

Fisher FIELDVUE digital valve controllers communicate directly with your control system and provide continuous performance data on your control valves. FIELDVUE technology captures travel deviation, input current, actuator pressure, and position data that your maintenance team can analyze to detect developing issues. When a valve begins to behave differently than its established baseline, FIELDVUE diagnostics flag the change before it becomes a process disruption.


FlowScanner™ Valve Analysis

FlowScanner™ technology is a portable diagnostic system that captures detailed valve performance data under actual operating conditions. Unlike bench testing, which removes the valve from the process environment, FlowScanner™ analysis happens in situ, giving you an accurate picture of how the valve is performing in your system. The result is highly accurate data that supports confident maintenance decisions.

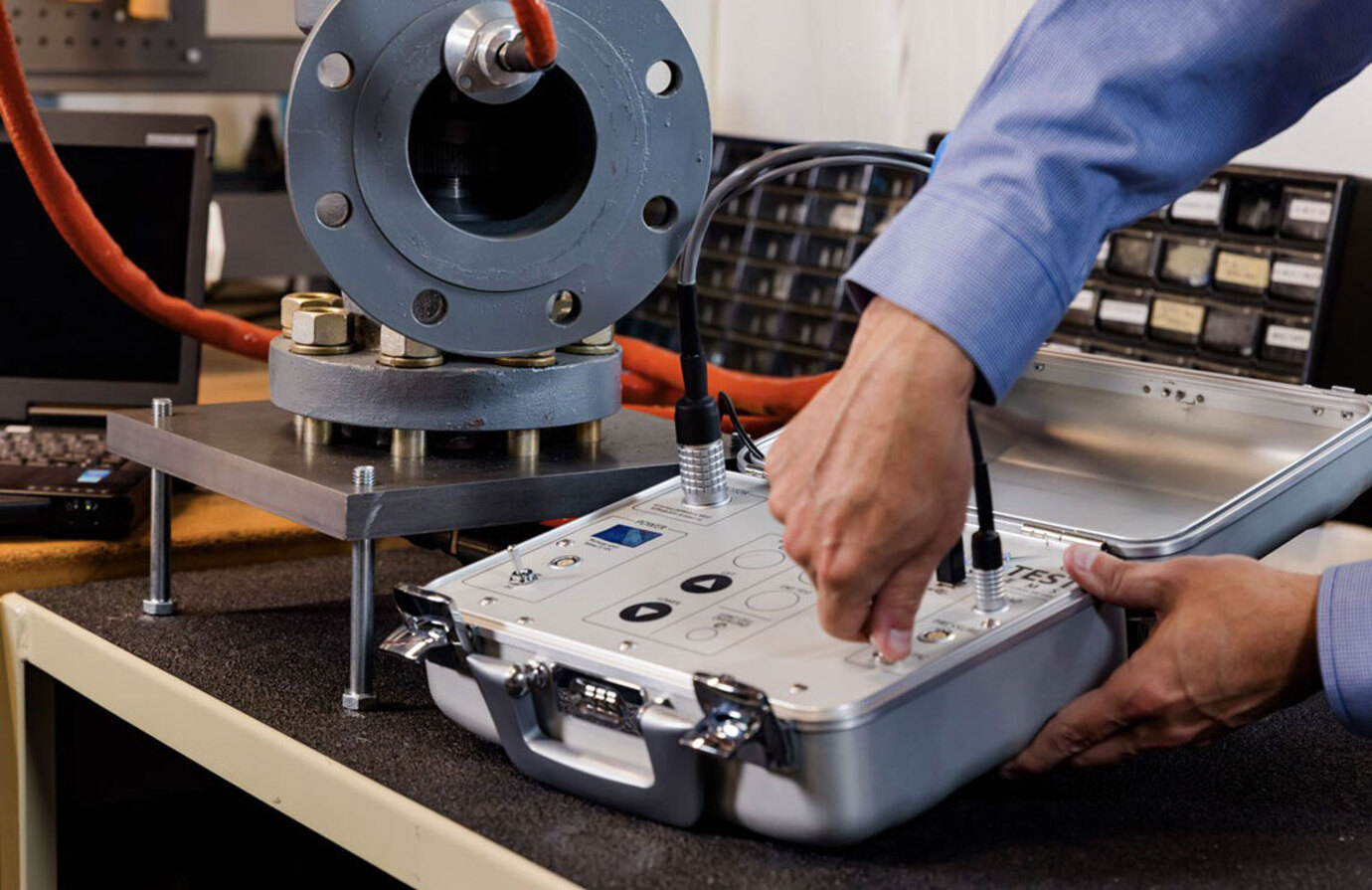

AccuTEST™ Partial Stroke and Full Stroke Testing

For safety instrumented systems and emergency shutdown valves, AccuTEST provides partial stroke testing capability that verifies valve functionality without interrupting production. Safety valves that sit dormant for extended periods are at risk of sticking or degrading without anyone knowing. AccuTEST lets you confirm that your safety valves will operate when you need them, meeting proof test requirements without a full process shutdown.


Leak Detection Services

Internal valve leakage is one of the most costly and difficult problems to detect through conventional inspection. Advanced valve leak detection techniques use ultrasonic measurement and thermal imaging to identify leakage through closed valves, across seats, and through packing. Catching that leakage early prevents product loss, reduces energy waste, and eliminates the safety risks associated with undetected process fluid escape.


Nozzle Testing

For pressure relief valves, nozzle testing verifies set pressure and reseating performance without full valve disassembly. This targeted approach saves time and reduces the labor cost of maintaining your overpressure protection systems while ensuring that those critical safety devices remain fully functional.



From Time-Based to Condition-Based Maintenance

Traditional maintenance schedules pull valves on a fixed interval, say every two years or every outage cycle, regardless of whether those valves need service. The result is a system that often services valves that are fine while missing ones that are quietly degrading between scheduled intervals.

Valve diagnostics give you the condition data you need to make smarter decisions. A valve that diagnostic testing shows is performing within spec can stay in service. A valve that shows early signs of seat wear or packing deterioration gets scheduled for service before it causes a problem. That precision reduces your total maintenance spend while improving your system reliability.


Turnaround and Outage Optimization

Planned turnarounds are enormously expensive. Every day of downtime has a cost, and the pressure to complete maintenance work within the scheduled window is intense. When you enter a turnaround with valve diagnostic data already in hand, your team knows exactly which valves need attention and which ones can be safely skipped. That intelligence compresses your turnaround timeline and reduces the risk of discovering unexpected problems once the process is already down.

Proconex specializes in turnaround and outage support, bringing diagnostic expertise and rapid response capability to your most critical maintenance windows. Learn more about our Turnarounds and Outages services.

Remote Asset Monitoring for Continuous Visibility

You do not have to wait for a scheduled inspection to know what your valves are doing. Remote asset monitoring connects your valve diagnostics to a continuous monitoring platform that flags anomalies in real time, no matter where in your facility the valve is located. For large facilities with hundreds or thousands of control points, that continuous visibility is transformative. Your team focuses attention where the data tells them it is needed rather than walking down equipment on a fixed route.

The return on investment from advanced valve diagnostic services is measurable and consistent across industries. Consider the following:

Reduced emergency maintenance costs: A single emergency valve repair, including overtime labor, expedited parts, and production losses, can easily cost ten to fifty times what a proactive diagnostic-driven service would have cost. Catching developing problems early is always cheaper than responding to failures.

Extended valve service life: Valves that are serviced based on actual condition data rather than arbitrary schedules tend to last longer, because they are not subjected to unnecessary disassembly and reassembly cycles that introduce the risk of installation errors.

Lower process variability: Control valves that are performing at their design specifications control your process more precisely. That precision translates directly into more consistent product quality, lower raw material waste, and improved yield.

Regulatory compliance: In regulated industries like life sciences, oil and gas, and power generation, documented valve testing and performance records are often a compliance requirement. Advanced valve diagnostics generate the data and documentation you need to satisfy those requirements efficiently.


Advanced valve diagnostic services deliver results across virtually every process industry, with particularly strong impact in:

Refining and Petrochemicals: High-value, high-hazard processes where valve reliability is directly tied to both safety performance and production economics.

Life Sciences and Pharmaceuticals: Aseptic and sterile manufacturing environments where valve integrity is critical to product quality and regulatory compliance.

Oil and Gas: Upstream, midstream, and downstream operations where remote locations and safety-critical applications make proactive diagnostics especially valuable.

Power Generation: Steam systems, turbine bypass valves, and safety relief systems that operate under high pressure and temperature conditions where failure consequences are severe.

Chemical Processing: Corrosive and reactive process environments where valve condition can deteriorate rapidly and undetected leakage creates both safety and environmental risk.

Your valves are some of the most critical assets in your facility. They control your process, protect your equipment, and keep your people safe. They deserve more than a fixed inspection schedule and a hope that nothing goes wrong in between.

Advanced valve diagnostics give you the visibility, confidence, and data you need to manage those assets intelligently. The facilities that adopt diagnostic-driven maintenance programs consistently outperform those that do not, on uptime, on maintenance cost, and on process reliability.

Discover Our Valve Diagnostic Solutions Today!

Proconex is ready to help you build a smarter, more reliable maintenance program starting with the valves you depend on most.
