Key Takeaways
- Valve actuators convert manual effort, electricity, compressed air, or hydraulic pressure into the motion needed to open, close, or modulate valves.
- The right actuator depends on the valve type, required torque or thrust, operating speed, available power source, environment, and fail-safe requirements.
- Manual actuators are simple, low cost, and dependable for infrequent operation, but they do not support remote or automated control.
- Electric actuators offer precise positioning and easy automation integration, though duty cycle and hazardous-area requirements should be considered.
- Pneumatic actuators are fast, durable, and well suited for fail-safe service when clean, reliable compressed air is available.
- Hydraulic actuators deliver high force for large valves and demanding applications, but they require careful maintenance of fluid, seals, filters, and leak prevention.

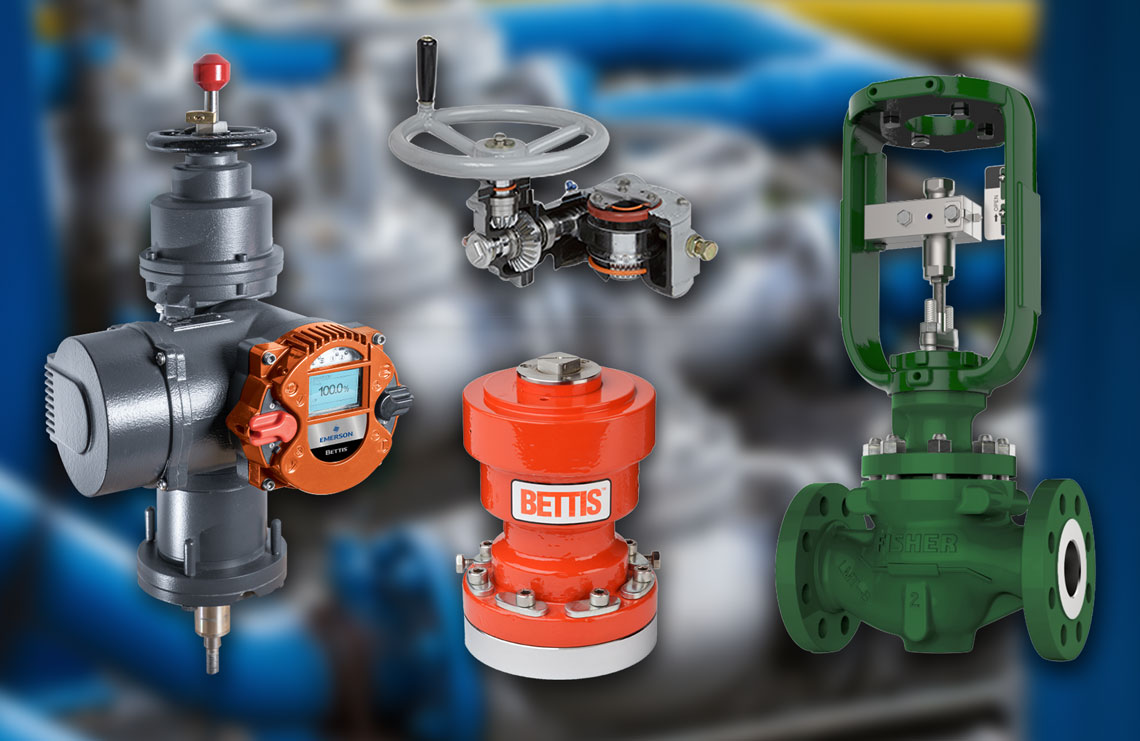

What is a Valve Actuator and How Does It Work?
Definition and Basic Function
A valve actuator is the mechanism that positions a valve. It receives an input signal or physical force and converts it into the linear or rotary motion needed to move the valve stem. Depending on the application, the actuator may simply open and close the valve or modulate it to maintain flow, pressure, level, or another process variable.
Power Sources: Pneumatic, Electric, and Hydraulic
Actuators are typically powered by compressed air, electricity, or hydraulic fluid. Pneumatic actuators use air pressure to move a piston or diaphragm. Electric actuators use a motor and gear assembly to create controlled movement. Hydraulic actuators use pressurized oil or fluid to generate high force in compact designs.
Linear vs Rotary Motion Types
Linear actuators move a valve stem in a straight line, making them common for gate, globe, and control valves. Rotary actuators turn the stem, often 90 degrees, and are commonly used with ball, butterfly, and plug valves. The motion type should match the valve design and required control action.
Manual Valve Actuators
Manual valve actuators use human effort rather than an external power source. Operators move the valve with a handwheel, lever, gearbox, or traveling nut mechanism.
Handwheel and Lever Operations
Handwheels are common on gate and globe valves, while levers are used for smaller quarter-turn valves. Gearboxes add mechanical advantage for larger valves or higher torque requirements. Traveling nut designs can slow disk travel near closure, helping reduce line shock and improve control at shutoff.
Advantages of Manual Operation
Manual actuators are inexpensive, simple, and reliable. They require no electricity, compressed air, or hydraulic pressure, making them useful in remote areas, backup service, and applications where valves are operated infrequently.
Disadvantages and Limitations
Their main limitations are speed, accessibility, and operator effort. Large or high-pressure valves can be difficult to operate, and manual valves cannot respond automatically to alarms or changing process conditions. They may also require operators to enter hazardous areas.
Common Applications
Typical uses include isolation, venting, draining, sampling, bypass lines, maintenance connections, and non-critical utility service.
Electric Valve Actuators
How Electric Actuators Work
Electric actuators use a motor and gear train to convert electrical energy into valve movement. A control signal activates the motor, the gears adjust speed and torque, and the actuator moves the valve to an open, closed, or modulating position.
Advantages of Electric Actuation
Electric actuators provide accurate positioning, remote control, and easy integration with automation systems. They consume power mainly while moving and avoid the need for compressed air infrastructure. Built-in limit and torque switches help protect the actuator and valve from overtravel or excessive resistance.
Disadvantages and Duty Cycle Limitations
Their primary drawback is duty cycle. Frequent starts, long run times, or continuous modulation can overheat the motor if the actuator is not sized for the service. Electric actuators may also need special designs or certifications for hazardous locations.
Typical Applications and Industries
Common applications include water and wastewater treatment, power generation, refining, marine systems, and processing industries such as chemical, food and beverage, pulp and paper, and pharmaceuticals.

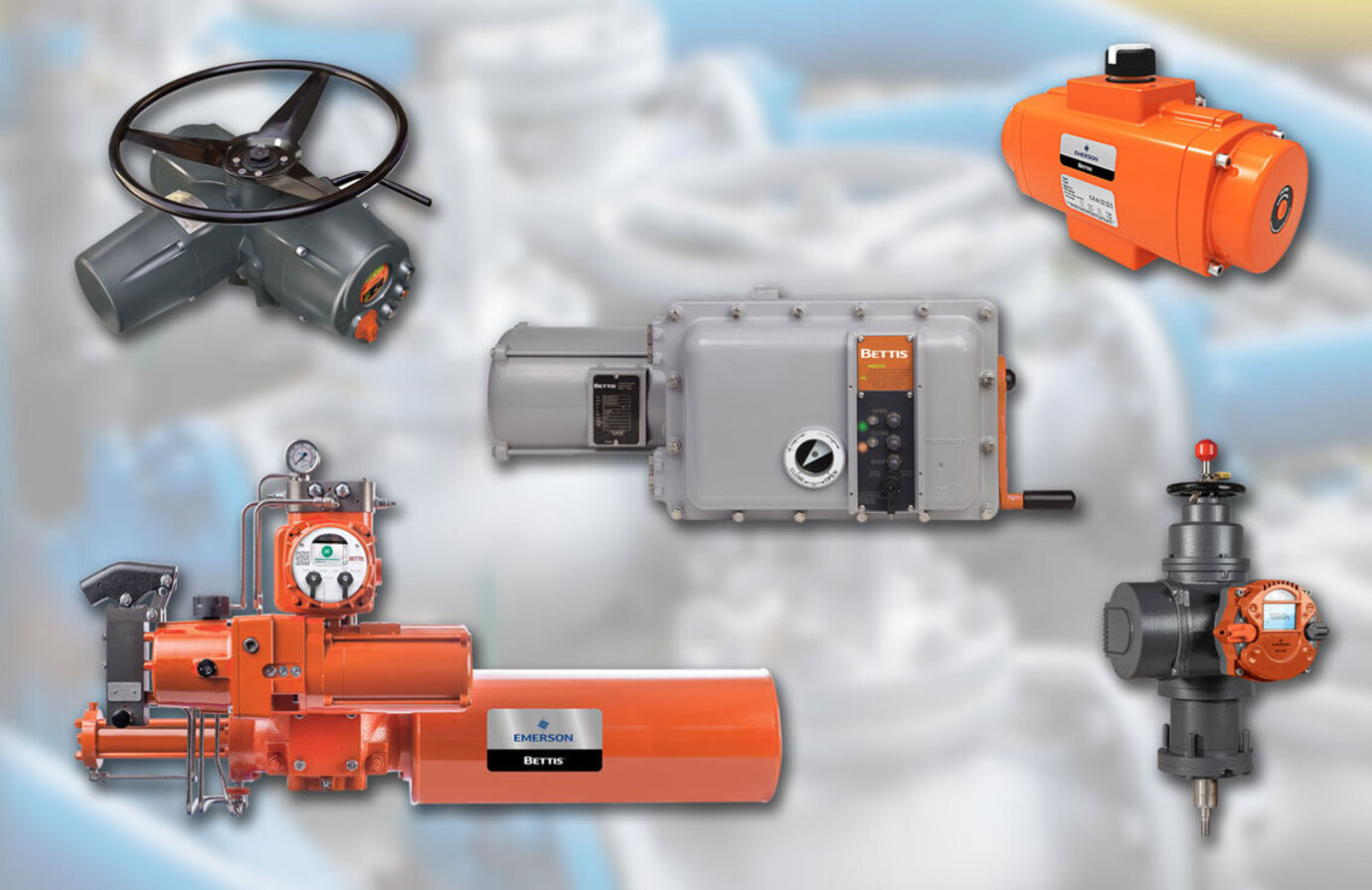

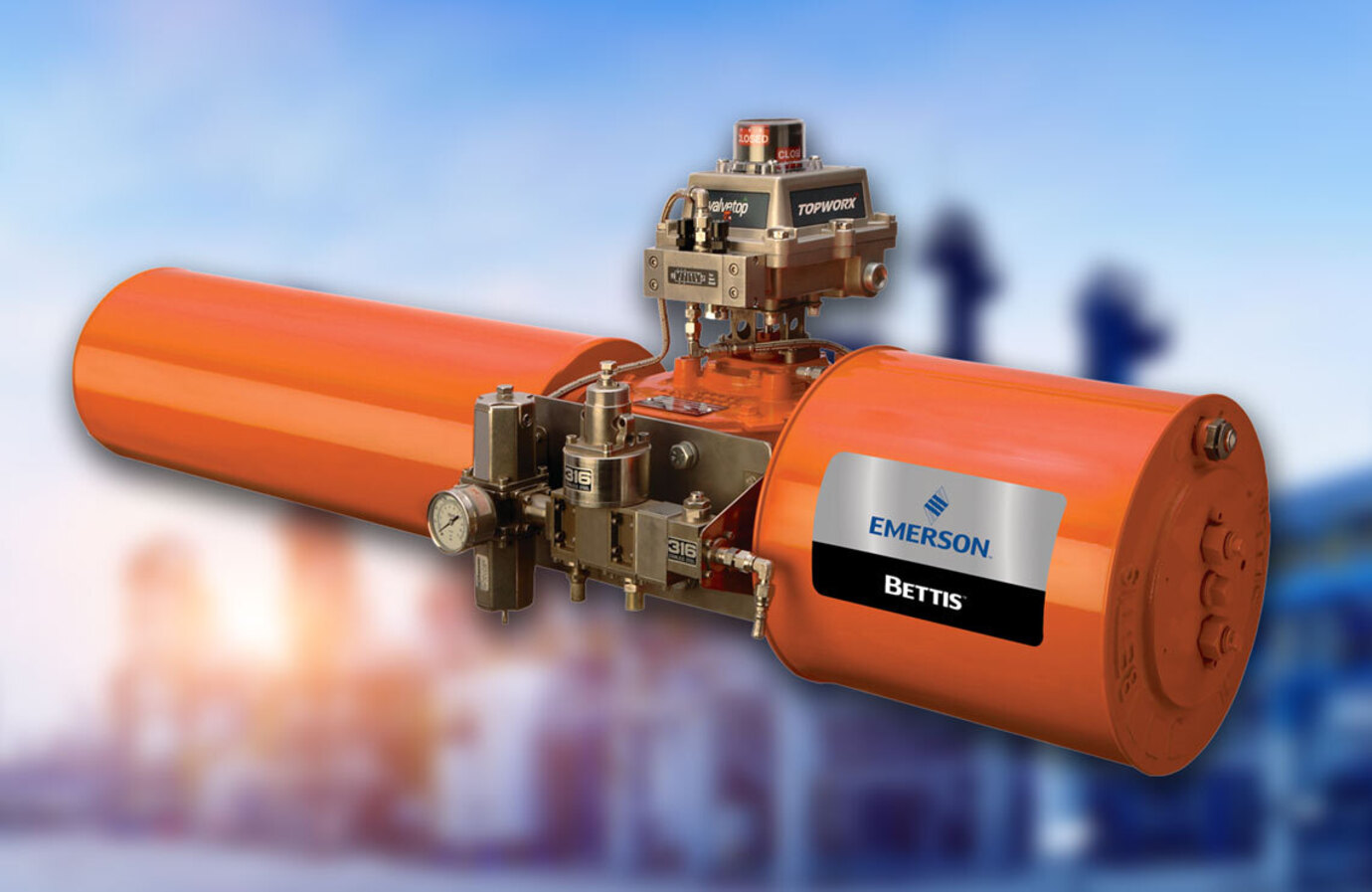

Pneumatic Valve Actuators
Compressed Air Operation Mechanism
Pneumatic actuators use compressed air or gas to move a piston or diaphragm. A solenoid or pilot valve directs air into or out of the actuator, causing the valve to open, close, or modulate. Because the actuator itself does not rely on an electric motor, pneumatic systems are useful in many hazardous or spark-sensitive environments.
Piston and Diaphragm Actuator Types
Spring-Return and Fail-Safe Configurations
Pneumatic actuators are commonly available as double-acting or spring-return designs. Double-acting actuators use air to move in both directions. Spring-return actuators use air in one direction and springs in the other, allowing the valve to move to a defined safe position if air or power is lost.
Advantages of Pneumatic Systems
Pneumatic systems are fast, durable, and capable of high cycling without motor overheating. They often have a lower actuator purchase cost than electric alternatives and are well suited for on-off service, fail-safe operation, and facilities that already have reliable instrument air.
Disadvantages and Air Supply Requirements
The main limitation is the need for clean, dry, reliable compressed air. Compressors, dryers, filters, tubing, and air leaks add maintenance requirements and can reduce efficiency if not managed properly.
Common Industrial Applications
Common applications include refineries, chemical plants, power plants, water treatment, terminals, mining, and hazardous areas where spark-free operation is important.
Hydraulic Valve Actuators
Pressurized Fluid Operation
Hydraulic actuators use pressurized oil or hydraulic fluid to move pistons or vanes. Because hydraulic fluid is nearly incompressible, these actuators can deliver high force, stiffness, and responsive motion in demanding applications.
High-Force Applications
Hydraulic systems are ideal when large valves, high pressures, or severe service conditions require substantial thrust or torque. They can generate far more force than similarly sized pneumatic systems and are often used where compact size and high power density are important.
Electro-Hydraulic Actuators
Electro-hydraulic actuators combine an electric motor, hydraulic pump, reservoir, and actuator into a self-contained unit. This approach provides hydraulic force without a separate central hydraulic power unit, simplifying installation and reducing external leak points.
Advantages of Hydraulic Systems
Key advantages include high torque, fast response, precise positioning, rugged construction, and the ability to handle shock loads. Spring-return or stored-energy designs can also support fail-safe operation.
Disadvantages and Maintenance Considerations
Hydraulic systems require more maintenance than many alternatives. Fluid condition, seals, filters, temperature, and leak prevention must be managed carefully. Separate hydraulic power units can also take up floor space and add system complexity.
| Actuator Type | Power Source | Best Fit | Key Tradeoff |
|---|---|---|---|
| Manual |
Human operation |
Infrequent use, isolation, backup service | Simple and low cost, but not automated |
| Electric | Electric motor | Precise positioning and remote control | Easy to integrate, but limited by duty cycle |
| Pneumatic | Compressed air or gas | Fast cycling and fail-safe operation | Reliable and fast, but requires clean air supply |
| Hydraulic | Pressurized fluid | Large valves and high-force applications | High power output, but more maintenance |
Conclusion
Choosing the right actuator starts with understanding the valve, process conditions, power availability, safety requirements, and maintenance expectations. Manual actuators are simple and economical for infrequent operation. Electric actuators offer precise automated control where duty cycle limits are acceptable. Pneumatic actuators provide fast, reliable, fail-safe performance when compressed air is available. Hydraulic actuators deliver the highest force for the most demanding services. Matching these strengths to the application helps improve safety, reliability, and long-term operating cost.
As the Emerson Impact Partner for the Mid-Atlantic region, we carry a wide variety of industrial actuators for most needs and applications. Check out our actuator products today!
FAQs
A valve actuator provides the force needed to open, close, or modulate a valve. It converts manual effort, electricity, compressed air, or hydraulic pressure into mechanical motion so the valve can control flow, pressure, level, or another process variable.
Start with the valve type and size, then evaluate torque or thrust requirements, available power source, operating speed, control accuracy, environmental conditions, maintenance expectations, and fail-safe requirements. The best actuator is the one that fits both the process conditions and the facility’s operating capabilities.
Manual actuators are best for valves that are operated infrequently, located in accessible areas, or used for non-critical isolation, venting, draining, sampling, and bypass service. They are simple and economical, but they are not ideal when remote operation, automation, or fast response is required.
Electric actuators use a motor and gear train to provide precise positioning and easy integration with control systems. Pneumatic actuators use compressed air to deliver fast, durable motion and are often preferred for high-cycle or fail-safe applications. The right choice depends on available utilities, control needs, duty cycle, and plant safety requirements.
Hydraulic actuators can generate high torque or thrust from a compact package because they use pressurized fluid. This makes them well suited for large valves, high-pressure systems, and severe service applications where pneumatic or electric actuators may not provide enough force.
Fail-safe operation means the actuator is designed to move the valve to a defined safe position if power, air, or control signal is lost. Depending on the process, that safe position may be fully open, fully closed, or held in place. Spring-return pneumatic actuators and stored-energy hydraulic designs are common fail-safe options.
Maintenance depends on the actuator type. Manual actuators may require periodic inspection and lubrication. Electric actuators should be checked for limit switches, torque settings, wiring, and motor condition. Pneumatic systems need clean, dry air and leak checks. Hydraulic systems require attention to fluid condition, seals, filters, temperature, and leak prevention.
