Selecting Sanitary Diaphragm Valves for Pharma: A Step-by-Step Guide

Sanitary diaphragm valves are the only truly clean straight-through valves for pharmaceutical applications — all other suitable valves use 90-degree configurations[10]. The diaphragm completely isolates process fluid from valve body internals and actuators, reducing contamination risk[5]. Forged 316L stainless steel bodies can be polished to surface finishes as low as 10Ra, with electropolishing achieving even better results[10].

Crevice-free surfaces minimize dead legs and bacterial growth, making CIP and SIP highly effective[5]. These valves handle high-risk media — Water for Injection, cell culture media, buffers, and final drug products — where contamination is not a recoverable event[4]. Vaccines, monoclonal antibodies, blood products: in biologics production, these valves are essential[4]. The top-entry design allows servicing bonnets and diaphragms without removing the valve body from process lines, enabling permanent welded installations that eliminate clamp joints entirely[10].

That combination of cleanability, material integrity, and serviceability is why pharmaceutical facilities specify them — and why getting the selection right matters from day one.

Start with your actual process conditions, not just vendor datasheets. The specification phase demands a clear picture of the following input variables:

Duty cycle matters here too. A valve cycling 25% of the time faces fundamentally different mechanical demands than one running continuously or sitting static for extended periods.

Step 1: Define Your Process Requirements and Duty Cycle

Document whether the valve handles isolation or modulating control, how frequently it cycles, and what happens during air or power loss. Capture line size, connection type, and any corrosive constituents that affect wetted parts. Pneumatic actuators generally face fewer thermal constraints than electric actuators, which follow IEC-S4 duty cycle classifications to prevent overheating. These details drive every downstream decision — skip them, and the specification unravels.

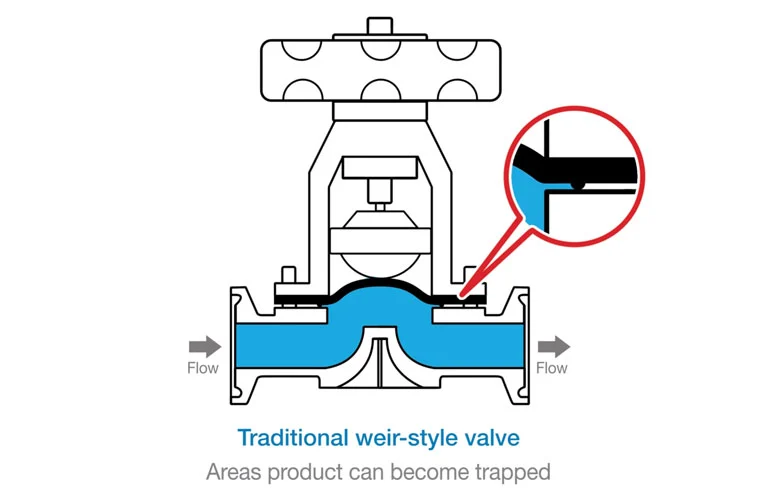

Step 2: Choose Between Weir-Type and Straight-Through Configuration

Match valve geometry to your process — not the other way around. Select weir-type for throttling control, longer diaphragm life, precise dosing, or PTFE compatibility with aggressive CIP chemicals. Choose straight-through for slurries, viscous fluids, minimal pressure drop, or solids-bearing media that require unobstructed flow paths. The geometry decision shapes cleanability, diaphragm longevity, and control performance for the life of the installation.

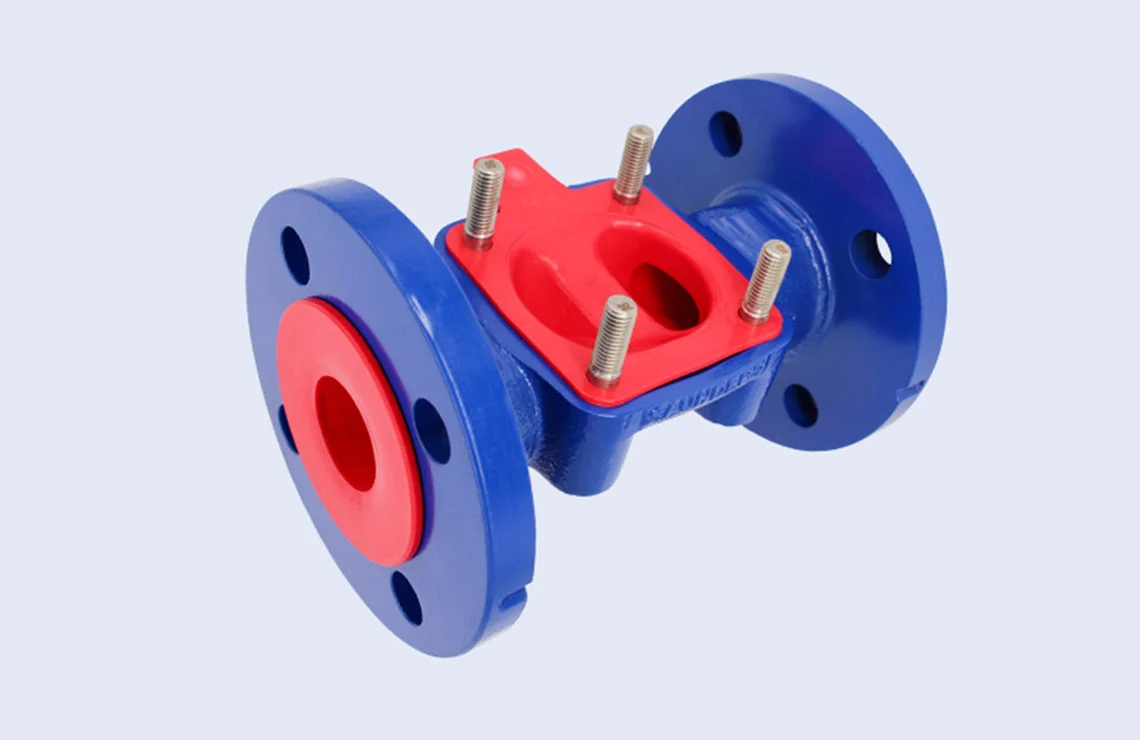

Step 3: Select Diaphragm Material Based on Chemical Compatibility

EPDM handles aqueous media, acids, caustics, and steam up to 250°F. PTFE resists virtually all pharmaceutical solvents and CIP chemicals across -100°F to 400°F — at higher cost and lower flexibility. Silicone suits applications requiring low-temperature flexibility. All diaphragm materials must meet FDA 21 CFR Part 177 and USP Class VI requirements. Specifying the wrong material here does not show up immediately. It shows up as seat swelling, diaphragm failure, or a contamination event three to six months into production.

Step 4: Specify Body Material and Surface Finish Requirements

Specify 316L stainless steel bodies with Ra ≤ 0.51 µm (20Ra) mechanically polished surfaces, or Ra ≤ 0.38 µm (15Ra) electropolished finishes for biotech applications. Electropolishing removes surface iron, increases the chromium oxide passive layer, and reduces bacterial adhesion. Surface finish is not a cosmetic requirement — it is a contamination control requirement.

Step 5: Determine CIP/SIP Compatibility and Cleanability Standards

Self-draining valve designs with maximum dead-leg ratios of 2:1 per ASME BPE-2019 are non-negotiable for sterile service. Valves must withstand repeated SIP cycles and aggressive CIP chemicals while achieving complete drainage at proper installation slope angles. A valve that cannot drain completely is a biofilm risk — regardless of diaphragm material or surface finish.

Step 6: Select Actuator Type and Control Requirements

Pneumatic actuation suits reliable instrument air supplies and defined fail-action requirements. Electric actuation fits sites without compressed air or requiring precise positioning feedback. Specify fail-closed, fail-open, or last-position behavior based on your process safety analysis — not default catalog settings. The actuator decision carries real safety and compliance consequences.

Our team of experts at Proconex can help you work through each of these steps for your specific application. Contact us today to learn more about our sanitary valve offerings for the pharmaceutical industry.

EPDM, PTFE, and Silicone Diaphragm Materials for Life Sciences

Material compliance dictates valve longevity and regulatory acceptance in pharma installations. Get this wrong, and you are not facing a minor correction — you are facing batch failures, audit findings, and potential product recalls.

EPDM handles aqueous media, dilute acids, caustics, and steam sterilization cycles while offering solid abrasion resistance across manufacturing and pharmaceutical processes[12]. PTFE provides nearly universal chemical compatibility — aromatic hydrocarbons, acids, caustics, ketones, and aggressive CIP chemicals — and complies with FDA 21 CFR 177 and USP Class VI standards[13]. Silicone diaphragms suit biopharmaceutical applications where flexibility at low temperatures and biocompatibility matter most, particularly for aseptic filling and dosing valves[14]. When a single material cannot meet all demands, composite diaphragms combine PTFE product-contact surfaces with EPDM or silicone backing — merging chemical resistance with the mechanical flexibility your process requires[14].

316L Stainless Steel Body Requirements and Surface Finish

We specify 316L stainless steel for valve bodies because low carbon content prevents chromium carbide precipitation during welding, maintaining corrosion resistance across weld zones[15]. That distinction matters — standard 316 stainless can lose corrosion resistance at weld heat-affected zones, creating exactly the kind of surface degradation that compromises sterility in pharmaceutical service.

Internal wetted surfaces require Ra ≤ 0.8 µm mechanically polished or Ra ≤ 0.5 µm electropolished finishes[16]. Electropolishing removes free iron and forms protective chromium oxide layers that resist bacterial adhesion[16] — making CIP and SIP measurably more effective. Material certificates must trace to heat numbers under EN 10204 3.1 requirements[17]. Documentation is what stands between your facility and an FDA audit finding.

ASME BPE, 3-A Sanitary Standards, and USP Class VI Compliance

ASME BPE governs biopharma equipment with Ra ≤ 0.5 µm (SF4) or ≤ 0.25 µm (SF6) electropolished surfaces, full material traceability, and strict weld quality standards[18]. The standard applies to API handling and sterile manufacturing subject to FDA inspection[18]. For non-sterile operations in food and beverage, 3-A Sanitary Standards set Ra ≤ 0.8 µm internal finish requirements — adequate for those applications, but not sufficient for sterile pharmaceutical service[18].

USP Class VI certification requires systemic injection, intracutaneous, and implantation testing to measure biological reactivity and biocompatibility[19]. Testing occurs at elevated temperatures: 50°C for 72 hours, 70°C for 24 hours, and 121°C for 1 hour[20]. Know which standard applies to your application before you specify — selecting to the wrong tier creates compliance gaps that surface at the worst possible time.

FDA 21 CFR Part 177 and Product-Contact Requirements

FDA 21 CFR Part 177 specifies the polymers permitted as indirect food additives for product-contact applications[21]. Section 177.2600 covers rubber articles for repeated use — including EPDM diaphragms and gaskets — requiring compositional compliance with extractables limits[22]. Section 177.1550 governs perfluorocarbon resins like PTFE for food contact with defined temperature conditions[22].

Here is where many specifications fall short: compliance documentation must include compound specifications from elastomer manufacturers, not just valve suppliers, with extractables data specific to pharmaceutical applications[22]. Valve suppliers alone cannot provide everything your regulatory team needs. Our experts can help you identify the right documentation requirements for your specific application and ensure every product-contact material meets the standard — before your next audit, not after.

Right now, you have everything you need to specify sanitary diaphragm valves that meet pharma standards and avoid costly contamination or compliance failures. The selection process is pretty straightforward when you follow these steps. Contact us today to learn more about our sanitary valve offerings for the pharmaceutical industry and get expert guidance on your specific application requirements.
